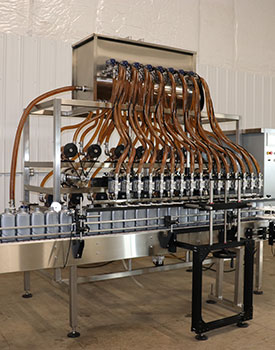

Our Pump Fillers are designed to fill most thin to thick liquids. With the options of filling by gravity, pressure, or pump, this flexible filler can handle products from thin and foamy to thick viscosities. Contact parts and other components are carefully chosen for each machine built to match your particular application and maximize your investment. Allen-Bradley PLC controllers allow precise time and volume control for continuous accurate dispensation of product to container.

Start/Stop Pump Fillers provide an accurate method for filling low to high viscosity liquids by controlling both pump rotation and pump speed.  Several types of pumps are available, including gear and lobe pumps, to fit your specifications. Multiple speed fill cycles can be easily programmed to eliminate material splashing at the beginning and end of the filling process. Each filler is custom designed with the right number of fill heads, contact parts and pump types to meet your specific
application.

Standard Specifications

• Frames are typically 304 stainless steel
• Product reservoirs available in a large range of sizes and materials to suit your needs
• Product tubing available in PVC, Teflon, silicone, and many other materials
• Fill head valves and actuators to suit your product and environment
• Pump type options include gear pumps (in stainless steel, brass or cast iron), progressive cavity, and
  sanitary lobe
• Touch-screen operator interface
• Allen-Bradley PLC
• Pin-style bottle indexing
• Photo sensor/counter system ensure containers are in place prior to filling

Optional Components

• 316 stainless steel construction upgrade
• Hazardous construction components and control panels for flammable products
• Sanitary models include crimped-end, seamless tubing and threadless tri-clamp fittings, and break-down
  ball valves at the fill heads and tank infeed lines
• Corrosive contact and corrosive fume construction components available
• Electronically controlled diving fill heads
• Starwheel or timing screw indexing
• Clean-in-place system
• Container neck locators for proper bottle alignment under fill heads
• Automatic drip tray

Applications

• Round, rectangular, oval and F-style containers from 2” up to 18” tall
• Gravity mode suitable for non-carbonated, non-dairy beverages, mouthwash, hairspray, cleaners,
  pharmaceuticals, and many other thin products
• Pressure mode suitable for medium-viscosity products like shampoos, gels, lotions, sauces, cleaners,
  pharmaceuticals, abrasives and more
• Pump mode suitable for thicker shampoos, gels, lubricants, cleaners, detergents, paints and foods such as sauces, syrups, honey and more

Power Requirements

• 230VAC, 3 phase, 60 Hz (other voltage/phase available)
• 80-100 psi compressed clean dry air
• NEMA 12, 4, 4X and hazardous location electrical enclosure and components are available
